UNITEX ArchiveLT

LTO Archive Software

UNITEX ArchiveLT

Archive software enable high speed archive & retrieval
to LTO/HDD/Optical Disk Archive and the off-line management function,
providing a comprehensive solution for data management

Update information

August 6, 2024
UNTIEX ArchiveLT for Windows now supports Incremental Archive function

Features

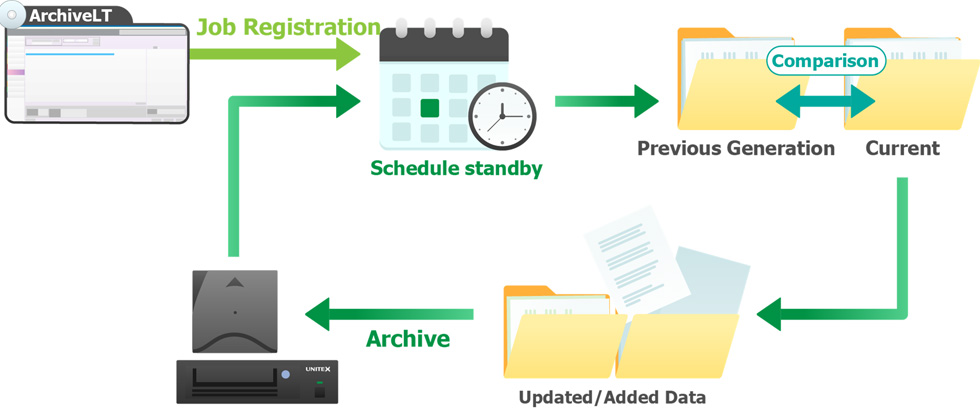

Incremental Archive (Option)

  • Archive at arbitrary intervals according to schedule settings.
  • Archive only those items that have been updated or added since the previous generation.
  • Retrieve allows restoration of a specific generation.
Incremental Archive

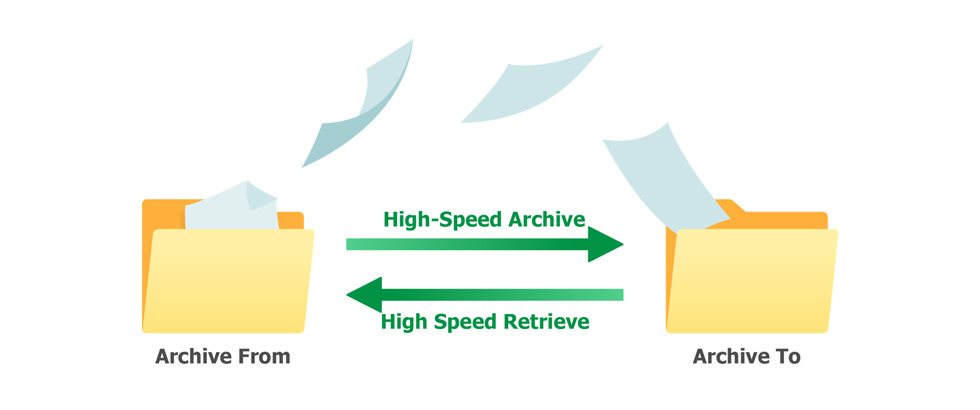

High speed archive & retrieval

UNITEX ArchiveLT enables high speed data archive to make the maximum use of device’s performance by UNITEX unique data transfer algorithm. It enables high speed data archive to not only LTO drive but also various disk storage such as HDD, SSD, and Optical Disk Archive*.

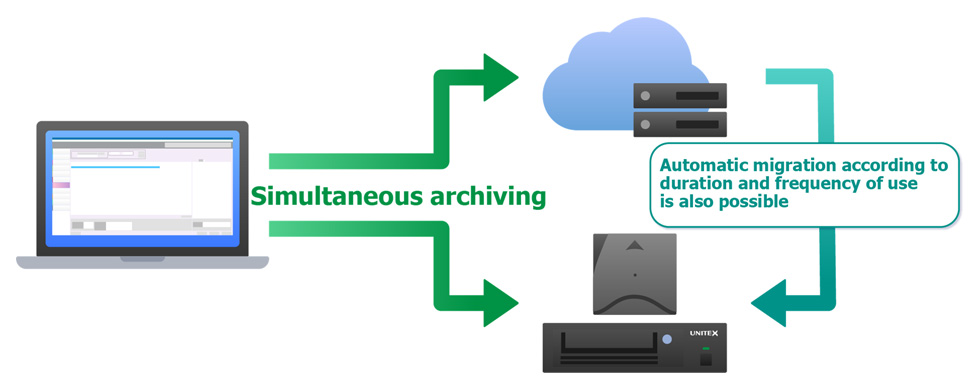

In addition, UNITEX ArchiveLT has many functions for handling important data safely such as simultaneous archiving to multiple devices, automatic verification after archiving, encryption of LTO tapes, etc.

* An Optional license is required when you use Optical Disk Archive.
High speed archive & retrieval

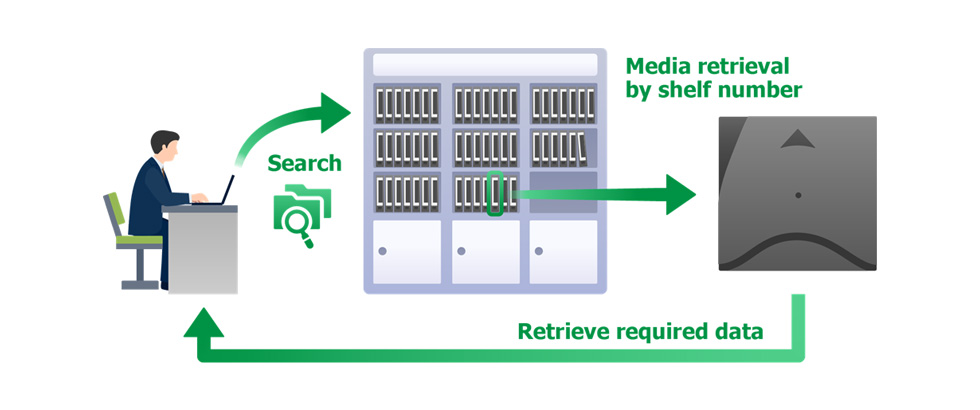

Off-line management for the archived data

Data archived by UNITEX ArchiveLT is registered in the management information, and it can be searched off-line. You can check the contents of data and search your target data in less effort. And you can register up to 15 any metadata for each archived data. For example, you can easily make shelf management for lots of LTO cartridges by registering the location of LTO cartridge and data’s information in metadata.

*Metadata input in English, Thai, Vietnamese language is available.
Off-line management for the archived data

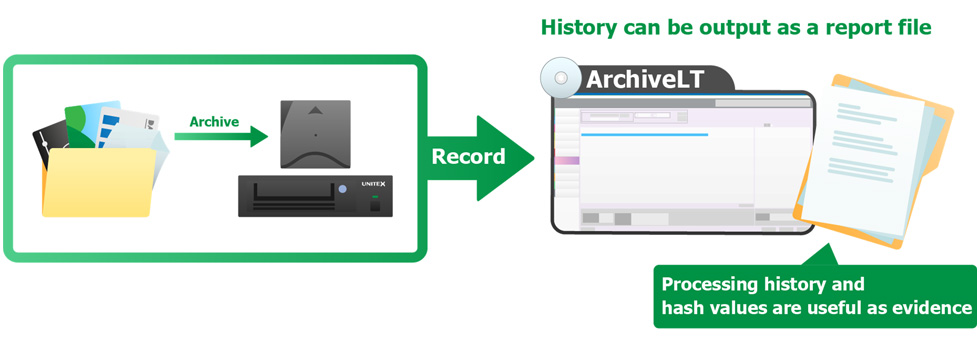

Reliable Job History Management function

The job execution result for the important data asset is stored automatically. And you can check it in Job History Management window.

【Job History Management function】
・Job execution result
・Job processing time
・Information of the input source/the output destination
・List of Job processing data
・Hash value (MD5/SHA-1)
・Performance information

* Enables to output them as a report file as well.
Reliable Job History Management function

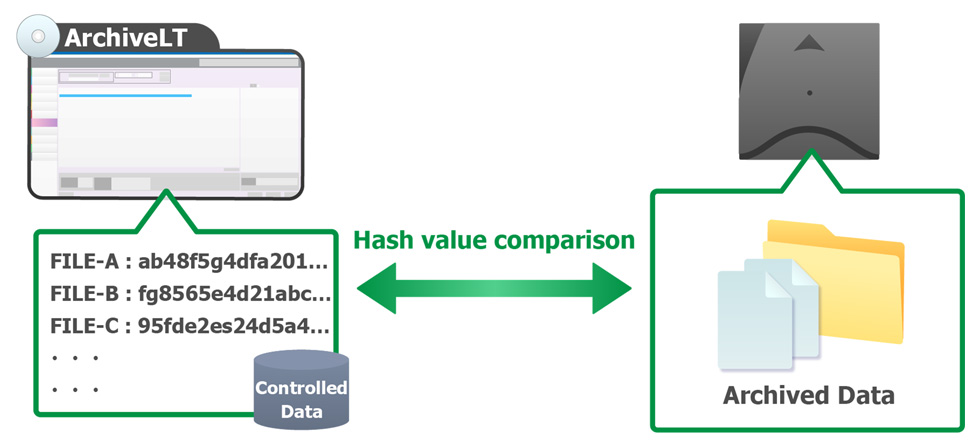

Consistency check for the archived data

When data is archived in UNITEX ArchiveLT, hash value of each file is automatically registered in management information. Consistency check function enables to confirm that there is no change in the archive data by recalculating the hash value and comparing with the hash value in management information.

Consistency check for the archived data

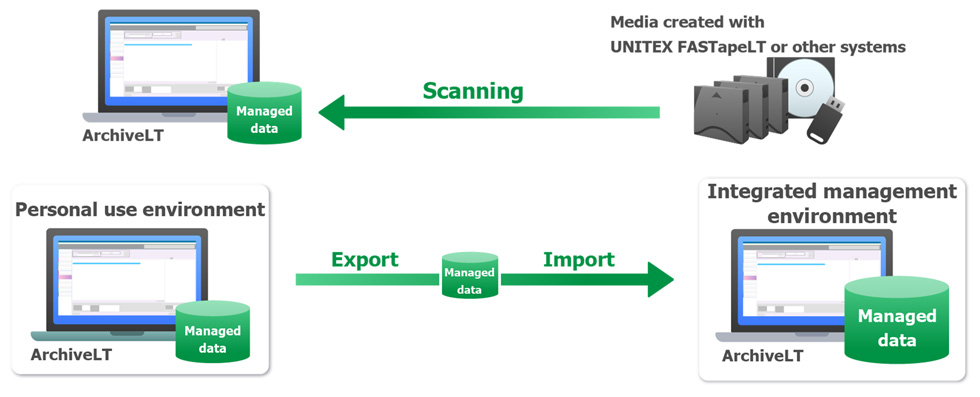

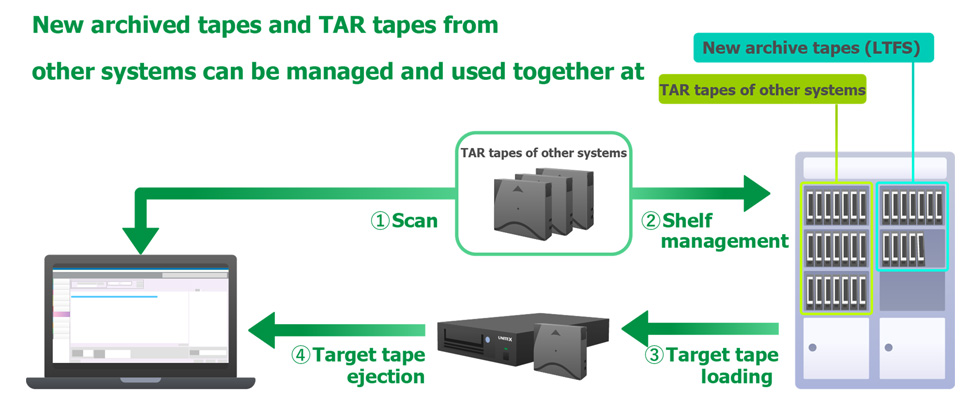

Import media management information
from other software

You can add media information created by UNITEX FASTapeLT or other company’s software to ArchiveLT media management information by scanning it. With this function, you can import media created by other software and manage it off-line.

Import media management information from other software

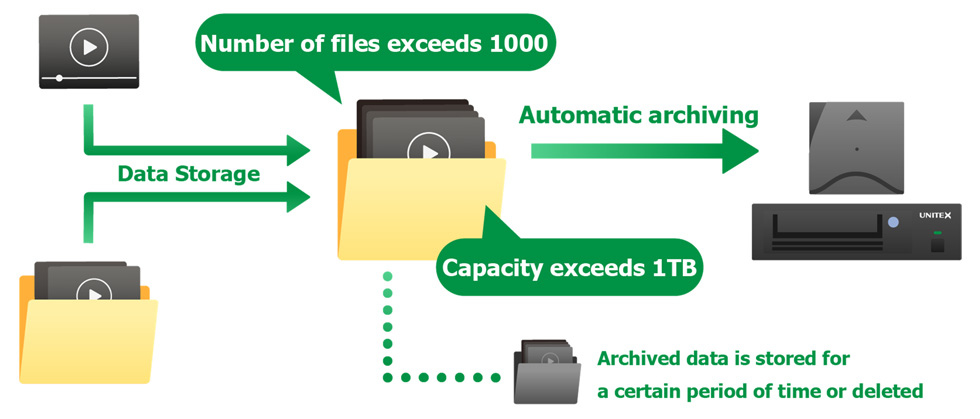

Watch folder function (Standard function in standard edition)

Enables to watch the folders and archive them automatically when the capacity exceeds the set value. Also enables to start archiving automatically when the number of files exceeds and when the specified filename is detected. You can save disk space and reduce costs by archiving the increasing data such as shooting data of surveillance camera to LTO tape.

* An optional license is required to use the watch folder function.
Watch folder function

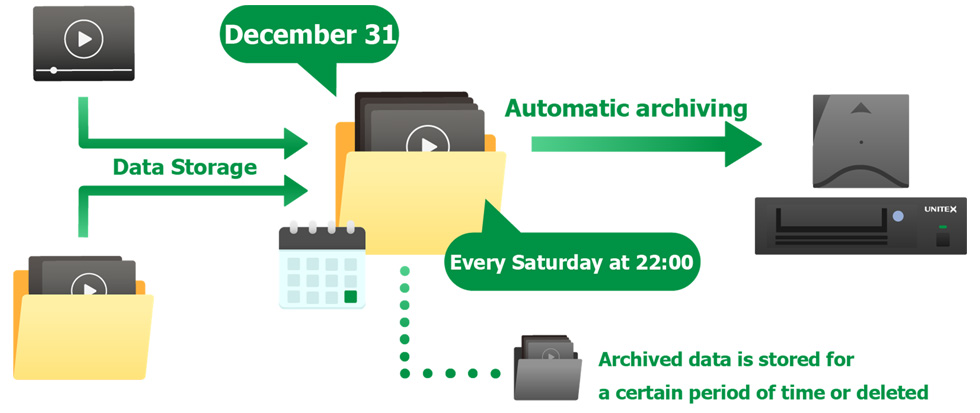

Automatic archiving schedule function (Standard function in standard edition)

You can schedule and archive data automatically such as "Everyday at 6 o'clock", "Every Friday".
Periodical data backup etc. can be done only with the first job registration operation.

* An optional license is required to use the schedule function.
Automatic archiving schedule function (Standard function in standard edition)

Management Information Replication

  • ArchiveLT's media and history management information can be replicated to the registered replication destination.
  • Real-time replication and full replication every 24 hours to ensure consistency with the replication source.
Management Information Replication

Flexible system configuration

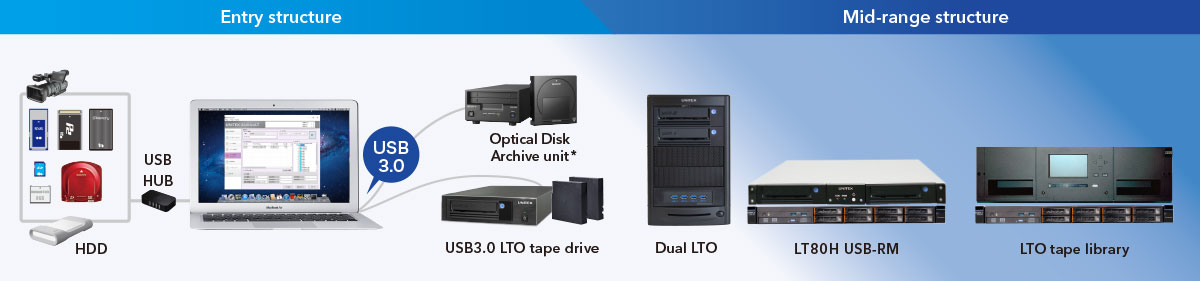

Supports various system according to the use from the entry configuration using a laptop PC to the mid range configuration supporting a tape library.

Flexible system configuration * An optional license is required.

Various use

Archiving large amounts of various data such as video data
and surveillance camera data

Capacity of the video data is increasing to 4K/8K. And there are a variety of target management files such as video footage, project, metadata file, etc. in the video data. How to store and manage them, including other digital assets, is a challenge. UNITEX ArchiveLT solves it by data storage & management function in LTO that is reliable and cost effective.

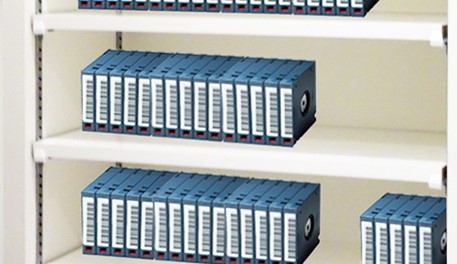

Off-line management for LTO data assets

Data archived by UNITEX ArchiveLT is registered in management information. And LTO assets stored in the past and LTO created by other software/system can be registered in management information and can be managed off-line collectively.

By using the off-line management function, you can easily search which data is stored and where it is stored without taking LTO out of the shelf, and you will be able to make effective use of information assets.

Off-line management for LTO data assets

Countermeasure for Ransomware

By archiving your important data to LTO and managing it off-line, you can minimize the security damage caused by Malware such as Ransomware. And UNITEX ArchiveLT enables you to retrieve the archived data easily whenever it is required.

Specification

Operating environment requirements

Item Support device and environment
CPU Intel Core i3 or above
(Recommended: Intel Xeon E3 4Core or above)
Memory 2GB or above (Recommended: 8GB or above)
Recommended Interface USB3.0 or above　* When connecting a USB device
SAS 6Gbps or above　* When connecting a SAS device
Display XGA resolution or above
Support OS Windows 10 (x64) *Ver. 1607 or later
Windows 11 (x64)
Windows Server 2016 (x64)
Windows Server 2019 (x64)
Windows Server 2022 (x64)

* Please contact us for OS not listed.
Support Device LTO single drive LT90H/80H2/80H/80/70H2/70H/70/（USB/SAS）
Dual LTO series
Flash memory / Disk storage
SONY Optical Disk Archive ODS-D280U *

* An optional license is required.
Support Media LTO ULTRIUM cartridge (LTFS format, Tar format *1)
Flash memory / Disk storage *2
SONY Optical Disk Archive cartridge ODC3300R *3

*1 Tar archive optional license is required.
*2 FAT32 / exFAT / NTFS / UDF format
*3 Optical Disk Archive optional license is required.
