The world's only system that allows anyone to use "LTO*" easily and safely,
the optimal media for long-term data storage applied in the cloud and data centers

Features

Small scale IT investments will release your anxiety of ever-increasing data

LTO usage scene

Small scale IT investments will release your anxiety of ever-increasing data

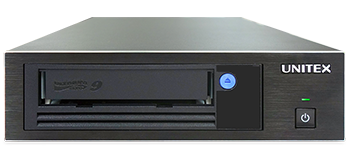

  • Support the latest LTO-9 (capacity per piece: 18TB native/45TB compressed)
  • The world's only USB interface LTO drive that saves data to LTO by simply connecting to a notebook PC or other USB devices
  • USB LTO drive size: 21 (W) x 37 (D) x 6 (H) cm, 4.5 kg

  • *LTO [Linear Tape-Open]: International standard magnetic tape media
    The latest media features a maximum capacity of 45TB per piece, low cost, durability of more than 30 years, safety by off-line management, and reduced environmental impact.

Easy to use without IT knowledge

Easy to use without IT knowledge

  • Data can be copied by drag & drop to LTO via USB connection

High-speed data transfer enables stress-free storage of large amounts of data

High-speed data transfer

High-speed data transfer enables stress-free storage of large amounts of data

  • USB interface with high-speed data transfer of 300MB/s
  • Our unique technology achieves both stable operation and high-speed data transfer.

Protect your data safely and securely from ransomware and other cyber attacks

Protect your data safely

Protect your data safely and securely from ransomware and other cyber attacks

  • Offline management of data stored in LTO by disconnecting it from the network (air gap deployment)
  • Combination with our archiving software, data falsification prevention, and LTFS encryption support for even more secure data protection

Realizing both "high capacity data storage" and "significant reduction in CO2 emissions"

significant reduction in CO2 emissions

Realizing both "high capacity data storage" and "significant reduction in CO2 emissions"

  • Compared to the conventional hard disk storage, LTO tape storage generates only about 4% to 10%(*) of CO2 emissions for the same amount of data
    (*)JEITA Tape Storage Technical Committee

Up to two LTO drives can be mounted in 2U LTO rackmount kit

2U LTO rackmount kit

Up to two LTO drives can be mounted in 2U LTO rackmount kit

  • Two LTO drives can be mounted in a 19 inch 2U
  • Available in USB, SAS, and USB/SAS hybrid models
  • Simultaneous Primary and Secondary LTO tapes creation
    with two same-generation LTO drives
  • Allow migration from older to the latest generation LTO tapes with two different generations of LTO drives
  • Size : 17.13 (W) x 14.65 (D) x 3.35 (H) inch, or 435 (W) x 372 (D) x 85 (H) mm
    Weight : 12.1 lb, or 4.5 kg

Other features

LTO Back LTO-9 transfer LTO backup software
  • USB/SAS hybrid model is switchable between USB 3.0 and SAS interface according to the usage
  • USB cable clamp prevents unexpected cable disconnection
  • USB plug-and-play connection enables connection and disconnection without stopping the server, making sharing and maintenance work easy on multiple serversLTO背面
  • Equipped with the latest USB boardEquipped with the latest USB board
  • Support Windows, Mac and Linux
  • Support the world's leading products of backup softwareLTO backup software
  • Support other LTFS based software Archiware P5, Xen data, Yoyotta

Software with usability
and reliability enables long-term operation

Software

LTFS Software
UNITEX LTFS3000

LTO Tape File System Software

LTFS Software
UNITEX LTFS3000

  • All LTFS operations can be performed on a single GUI in English
  • Move/copy/delete data by drag & drop from Mac Finder
  • Multiple LTO drives can share a single system
  • Data can be shared and exchanged in multiple OS environments (Windows, Mac, Linux)

    View Details

LTO Archiving Software
UNITEX ArchiveLT

LTO Archiving Software UNITEX ArchiveLT

LTO Archiving Software
UNITEX ArchiveLT

  • Archiving of large data such as video data and surveillance camera data
  • High-speed archiving and retrieval
  • Offline management of archived data
  • Reliable history management function
  • Verification check of archived data
  • Migration from other software

    View Details

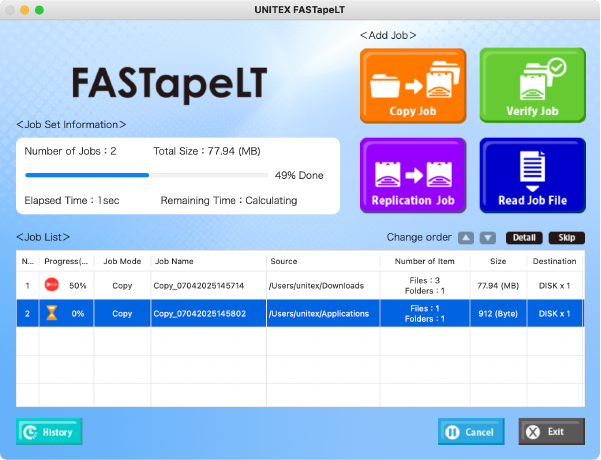

LTFS Data Copy Software
UNITEX FASTapeLT for MacOSX

UNITEX FASTapeLT

LTFS Data Copy Software
UNITEX FASTapeLT for MacOSX

  • Simultaneous copying to 4 destinations (LTO/HDD) at maximum
  • Simultaneous copying to multiple LTO tapes
  • Save time by high-speed copying with our unique algorithm
  • Automatic verification function confirms perfect match of copied data.

    View Details

Tar Backup Software
TarBackup

TarBackup

Tar Backup Software
TarBackup

  • Read and extract magnetic tapes written by Linux/UNIX tar command
  • Extract archived files created by Linux/UNIX tar command
  • Write magnetic tapes that can be read and extracted with the Linux/UNIX tar command
  • Create archived files that can be extracted by the Linux/UNIX tar command
  • Write Windows files in tar format
  • Provide command line interface
  • Support files in Japanese/directory names (support SJIS and EUC)

Arcserve Backup 19.0 for Windows

Arcserve Backup 19.0 for Windows

Arcserve Backup 19.0 for Windows

  • Adaptability for small to large scale deployments
  • Backup to a variety of targets including tape media and the cloud
  • Extensive standard features including data de-duplication
  • Centralized management from a single management console
  • Track resource usage and more with reports

Main Applications

From laptop PC to LTO
Easy backup and archiving

From laptop PC to LTO
Easy backup and archiving

  • Ideal entry model for LTO tape devices
  • Ideal for hardware migration in small-scale environments where backup and archiving were previously performed with DAT160
  • Compatible with the latest LTO-9 for high-capacity data storage
  • Save space in tape storage locations
  •
  •

Storage for large volumes of high-resolution video data

Storage for large volumes of high-resolution video data

  • Archiving of video assets such as films and VTRs
  • Meet the demand for archived media of increasing video data
  •
  •

Surveillance Camera Data Archiving

Surveillance Camera Data Archiving

  • Archiving of large-volume video data due to higher resolution, colorization, and the increase in the number of surveillance cameras used in various scenes such as crime prevention, food defense, etc.
  •
  •

Storage of electronic medical records and medical image data, data exchange with other hospitals and research institutions

Storage of electronic medical records and medical image data, data exchange with other hospitals and research institutions

  • Archiving of large volumes of high-resolution data from electronic medical records and medical image data
  • Long-term storage of medical data, data exchange between hospitals
  •
  •

Specifications

High-Speed USB 3.0 LTO Tape Drive

Model LT90H USB-ArchiveLTW
LT90H USB-FASTapeLTM
LT90H USB-ArchiveLTL
LT90H USB-ArchiveLTQ		 LT80H2 USB-ArchiveLTW
LT80H2 USB-FASTapeLTM
LT80H2 USB-ArchiveLTL
LT80H2 USB-ArchiveLTQ		 LT70H2 USB-ArchiveLTW
LT70H2 USB-FASTapeLTM
LT70H2 USB-ArchiveLTL
LT70H2 USB-ArchiveLTQ
Drive Type LTO Ultrium9 LTO Ultrium8 LTO Ultrium7
Interface USB3.0
Capacity 18.0TB (Native) /
45.0TB (2.5:1 Compressed) 		12.0TB (Native) /
30.0TB (2.5:1 Compressed) 		6.0TB (Native) /
15.0TB (2.5:1 Compressed)
Native Data Transfer
(Maximum)		 USB3.0：300MB/sec
OS Support
(LTxxH USB-ArchiveLTW)		 Windows 7（x64/x86）※1　/　Windows 8（x64/x86）※1　/　Windows 8.1（x64/x86）
Windows 10（Ver.1607 or later）（x64/x86）　/　Windows 11（x64）
Windows Server 2008 R2（x64）※1　/　Windows Server 2012（x64）※1　/　Windows Server 2012 R2（x64）
Windows Server 2016（x64）　/　Windows Server 2019（x64）　/　Windows Server 2022（x64）　/　Windows Server 2025（x64）
OS Support
(LTxxH USB-FASTapeLTM)		 macOS10.15（64bit）
macOS 11　/　macOS 12　/　macOS 13　/　macOS 14　/　macOS 15
OS Support
(LTxxH USB-ArchiveLTL)
(LTxxH USB-ArchiveLTQ)		 Red Hat Enterprise Linux 7　/　Red Hat Enterprise Linux 8
Dimensions (mm) 213（W） × 370（D） × 58（H）mm　※Main body only （excluding protruding parts）
Power Consumption 55VA 65VA
Weight 4.5Kg
Kit Contents
(LTxxH USB-ArchiveLTW)		 LTO Tape Drive, USB 3.0 cable, Cleaning Cartridge
User Guide (English), ArchiveLT Standard for Windows License (English)
Kit Contents
(LTxxH USB-FASTapeLTM)		 LTO Tape Drive, USB 3.0 cable, Cleaning Cartridge
User Guide (English), FASTapeLT for MacOSX License (English)
Kit Contents
(LTxxH USB-ArchiveLTL)		 LTO Tape Drive, USB 3.0 cable, Cleaning Cartridge
User Guide (English), ArchiveLT for Linux License (English)
Kit Contents
(LTxxH USB-ArchiveLTQ)		 LTO Tape Drive, USB 3.0 cable, Cleaning Cartridge
User Guide (English), ArchiveLT QNAP License (English)
Optional Equipment LTO Ultrium9 Data Cartridge,
USB 3.0 Type-C cable		 LTO Ultrium8 Data Cartridge,
USB 3.0 Type-C cable		 LTO Ultrium7 Data Cartridge,
USB 3.0 Type-C cable
High-Speed USB 3.0 / SAS LTO Tape Drive
Model LT90H USB/SAS-ArchiveLTW
LT90H USB/SAS-FASTapeLTM
LT90H USB/SAS-ArchiveLTL
LT90H USB/SAS-ArchiveLTQ		 LT80H2 USB/SAS-ArchiveLTW
LT80H2 USB/SAS-FASTapeLTM
LT80H2 USB/SAS-ArchiveLTL
LT80H2 USB/SAS-ArchiveLTQ		 LT70H2 USB/SAS-ArchiveLTW
LT70H2 USB/SAS-FASTapeLTM
LT70H2 USB/SAS-ArchiveLTL
LT70H2 USB/SAS-ArchiveLTQ
Drive Type LTO Ultrium9 LTO Ultrium8 LTO Ultrium7
Interface USB3.0 / 12Gbps SAS USB3.0 / 6Gbps SAS
Capacity 18.0TB (Native) /
45.0TB (2.5:1 Compressed) 		12.0TB (Native) /
30.0TB (2.5:1 Compressed) 		6.0TB (Native) /
15.0TB (2.5:1 Compressed)
Native Data Transfer
（Maximum）		 USB3.0：300MB/sec
12Gbps SAS：300MB/sec		 USB3.0：300MB/sec
6Gbps SAS：300MB/sec
OS Support
(LTxxH USB/SAS-ArchiveLTW)		 Windows 7（x64/x86）※1　/　Windows 8（x64/x86）※1　/　Windows 8.1（x64/x86）
Windows 10（Ver.1607 or later）（x64/x86）　/　Windows 11（x64）
Windows Server 2008 R2（x64）※1　/　Windows Server 2012（x64）※1　/　Windows Server 2012 R2（x64）
Windows Server 2016（x64）　/　Windows Server 2019（x64）　/　Windows Server 2022（x64）　/　Windows Server 2025（x64）
OS Support
(LTxxH USB/SAS-FASTapeLTM)		 macOS10.15（64bit）
macOS 11　/　macOS 12　/　macOS 13　/　macOS 14　/　macOS 15
OS Support
(LTxxH USB/SAS-ArchiveLTL)
(LTxxH USB/SAS-ArchiveLTQ)		 Red Hat Enterprise Linux 7　/　Red Hat Enterprise Linux 8
Dimensions (mm) 213（W） × 370（D） × 58（H）mm　※Main body only （excluding protruding parts）
Power Consumption 55VA 65VA
Weight 4.5Kg
Kit Contents
(LTxxH USB/SAS-ArchiveLTW) 		LTO Tape Drive, USB 3.0 cable, Cleaning Cartridge
User Guide (English), ArchiveLT Standard for Windows License (English)
Kit Contents
(LTxxH USB/SAS-FASTapeLTM)		 LTO Tape Drive, USB 3.0 cable, Cleaning Cartridge
User Guide (English), FASTapeLT for MacOSX License (English)
Kit Contents
(LTxxH USB/SAS-ArchiveLTL)		 LTO Tape Drive, USB 3.0 cable, Cleaning Cartridge
User Guide (English), ArchiveLT for Linux License (English)
Kit Contents
(LTxxH USB/SAS-ArchiveLTQ)		 LTO Tape Drive, USB 3.0 cable, Cleaning Cartridge
User Guide (English), ArchiveLT QNAP License (English)
Optional Equipment SAS board/SAS cable,
LTO Ultrium9 Data Cartridge,
USB 3.0 Type-C cable		 SAS board/SAS cable,
LTO Ultrium8 Data Cartridge,
USB 3.0 Type-C cable		 SAS board/SAS cable,
LTO Ultrium7 Data Cartridge,
USB 3.0 Type-C cable
SAS LTO Tape Drive
Model LT90 SAS-ArchiveLTW
LT90 SAS-MacOSX
LT90 SAS-Linux		 LT80 SAS-ArchiveLTW
LT80 SAS-MacOSX
LT80 SAS-Linux		 LT70 SAS-ArchiveLTW
LT70 SAS-MacOSX
LT70 SAS-Linux
Drive Type LTO Ultrium9 LTO Ultrium8 LTO Ultrium7
Interface 12Gbps SAS 6Gbps SAS
Capacity 18.0TB (Native) /
45.0TB (2.5:1 Compressed) 		12.0TB (Native) /
30.0TB (2.5:1 Compressed) 		6.0TB (Native) /
15.0TB (2.5:1 Compressed)
Native Data Transfer
（Maximum）		 12Gbps SAS：300MB/sec 6Gbps SAS：300MB/sec
OS Support
(LTxx SAS-ArchiveLTW) 		Windows 7（x64/x86）※1　/　Windows 8（x64/x86）※1　/　Windows 8.1（x64/x86）
Windows 10（Ver.1607 or later）（x64/x86）　/　Windows 11（x64）
Windows Server 2008 R2（x64）※1　/　Windows Server 2012（x64）※1　/　Windows Server 2012 R2（x64）
Windows Server 2016（x64）　/　Windows Server 2019（x64）　/　Windows Server 2022（x64）　/　Windows Server 2025（x64）
OS Support
(LTxx SAS-MacOSX)		 macOS10.15（64bit）
macOS 11　/　macOS 12　/　macOS 13　/　macOS 14　/　macOS 15
OS Support
(LTxx SAS-Linux)		 Red Hat Enterprise Linux 7　/　Red Hat Enterprise Linux 8
Dimensions (mm) 213（W） × 370（D） × 58（H）mm　※Main body only （excluding protruding parts）
Power Consumption 55VA 65VA
Weight 4.5Kg
Kit Contents
(LTxx SAS-ArchiveLTW)		 LTO Tape Drive, Cleaning Cartridge
User Guide (English), ArchiveLT Standard for Windows License (English)
Kit Contents
(LTxx SAS-MacOSX)		 LTO Tape Drive, Cleaning Cartridge
User Guide (English), UNITEX LTFS3000 software for MacOSX (English)
Kit Contents
(LTxx SAS-Linux)		 LTO Tape Drive, Cleaning Cartridge
User Guide (English), UNITEX LTFS3000 software for Linux (English)
Optional Equipment SAS board/SAS cable,
LTO Ultrium9 Data Cartridge		 SAS board/SAS cable,
LTO Ultrium8 Data Cartridge		 SAS board/SAS cable,
LTO Ultrium7 Data Cartridge

※1 The LT80H series and LT80 series do not support this OS.

Optional Licenses
  • Additional LTO Drive Option
  • ArchiveLT for Windows Additional Drive License
  • LTO Autoloader Control Option
  • ArchiveLT for Windows LTO Autoloader Control License
  • Additional LTO Library Slot Option
  • ArchiveLT for Windows Slot Expansion License
  • Third-Party LTO Drive Control Option
  • ArchiveLT for Windows Third-Party Drive Control License
  • Cloud Integration
  • ArchiveLT for Windows Google Drive Integration License
  • ArchiveLT for Windows Amazon S3 Integration License
  • ArchiveLT for Windows Wasabi Integration License
  • LTFS Encryption
  • ArchiveLT for Windows LTFS Encryption License
  • ArchiveLT for Windows Autoloader LTFS Encryption License
  • ArchiveLT for Windows Library LTFS Encryption License
  • SONY ODA Migration
  • ArchiveLT for Windows SONY ODA Migration License
  • Web-Based Operation
  • ArchiveLT for Windows PC Web Connection License
  • ArchiveLT for Windows Server Web Connection License
