ODA2020HYBRID

Blu-ray/LTO Hybrid System

>ODA2020HYBRID

Automatic writing and label printing to maximum 200 BD/DVD/CD discs
One LTO tape drive and two optical drives are equipped

Features

Optical disc autoloader and LTO Tape drive are embedded to high performance server

  • User can choose high capacity (1.5TB: native) LTO5 tape and high quality optical media which has long-term stability of over 50 years.
  • Possible splitting/aggregation of data stored in between BD/DVD and LTOLTO-BD/DVD
  • High sensitive documents can be encrypted by AES system
  • The upper layer application interoperability by SDK

High-speed continuous processing of optical media

  • 2 units of BD or DVD drive are equipped.
  • The autoloader is capable of continuous read/write processing of up to 200 discs.

Large amounts of data can be stored to LTO tape by LTFS format

  • One LTO-5 Tape drive is equipped
  • Cartridge capacity 1.5TB (Native), 3.0TB (2:1 compression)
  • High access speed: Max 140MB/sec
  • AES256bit hardware data encryption function

Superior reliability

  • MCBF(Mean Cycle Between Failure)of Unitex's own designed media transport mechanism is more than 100,000 times
  • Server level high reliability controller is equipped.
  • Key lock mechanism of the front door prevents illegal taking out the discs.
Superior reliability

High quality Blu-ray drive for archiving can be equipped

  • The drive is able to use a special type of Blu-ray disc that is guaranteed to ensure the data for over 50 years.

UNITEX FASTDVD Publisher is equipped as standard

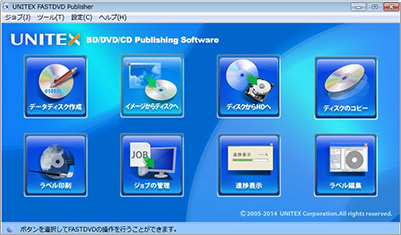

Simple and easy to use main menu
  • Data disc production function
  • Writing function from image file to BD/DVD/CD
  • Reading function of image file
  • Media duplication
  • Job management
  • Display the progress of job
UNITEX FASTDVD Publisher
Parameter setting screen which enables detailed setting
  • Selection of efficiency priority mode / first-in-first-out mode
  • Automatic disconnection function of the failed drive
  • Automatic display function of error / warning messages
Parameter setting screen
A variety of standard features
  • Multiple units of the publishing system can be controlled by single client PC
  • Setting of the publishing system can be changed by Client PC
  • Output report function which automatically save execution results of jobs
  • Detailed log output function for failure investigation
A variety of standard features
Built-in LTO drive supports LTFS(Linear Tape File System)
  • The data stored in several optical discs can be aggregated to single LTO tape.
    In addition, it is equipped with a multi-copy function that can also copy files to optical discs from LTO tape.

Professional archive BD drive equipped model

Equipped with Pioneer BD drive which is suitable for digital archive. The BD drive uses a pick-up which has been specially selected, and the recording performance of the drive is pulled up to the highest level.

By using Mitsubishi Kagaku Media's enterprise grade BD-R for archive, you can write the data with high quality and can reduce the variation in the quality and can create high quality digital archive media which has long-term storage stability of more than 50 years.

comparison of error rate

The Enterprise grade media uses Mitsubishi Kagaku Media's own Metal Ablative Layer (MABL) technology.

Using the Arrhenius equation, the estimated lifetime of Enterprise Grade BD-R 50GB for Archive has been calculated at over 50 years in a 25 degrees Celsius, 80% relative humidity environment. In order to reduce the risk of data becoming unreadable earlier than anticipated, the Enterprise Grade BD-R 50GB for Archive is manufactured at a Japanese factory, and each lot is subjected to validation through accelerated aging tests. Only discs that have passed test criteria tighter than those for normal products are shipped. As advantages for durability of optical discs, the Enterprise Grade disc is possible to reproduce the data even when exposed in harsh environments (penetration into the water or salt water, high temperature and high humidity, low temperature, corrosive environment gas, chemicals, and solar) temporarily. It has been obtained by experimental results by Mitsubishi Kagaku Media.

Item of test Test environment Results
Resistance to seawater ・Store the disc into the sea in a week Can reproduce
Resistance to corrosive gases ・H2S(25℃, 75% RH, 12.5ppm)
・SO2(25℃, 75% RH, 25ppm)96h exposure
Can reproduce
Chemical resistance ・Wipe off 20 times by hypochlorous acid (1%).
・Wipe off 20 times by ethanol (80%)
Can reproduce
Temperature and humidity durability ・80℃, 80% RH storage 750h
・-40℃ storage 250h
Can reproduce
Machine characteristic ・Bending test of the disc (bending angle of up to 130 degrees). Can reproduce

*Long-term storage in those environments is not recommended. Dirt surface of the disc attached during the tests was wiped with a soft dry cloth, and playback the data.

Long term storage at low cost and low environmental burden

Optical disc has accumulation of more than 20 years experiences as professional digital storage media which start from MO and UDO. As long term archiving storage, the optical disc has the following characteristics.

Low cost, Low environmental burden

Since optical drive does not need a large-scale air conditioning equipment at the time of storage, and no power consumption is required, it can reduce the operating cost.
In addition, it is environment friendly media because migration frequency is suppressed in comparison to other media.

Mechanical characteristics

Optical disc is non-contact to pick-up, no physical degradation occurs due to repeated read/write. In addition, because the media itself does not require any dedicated electronic circuit or moving components, there is no need to worry about the failure on the disc itself.

Data stability

Write-once optical disc is a real Write-Once media. Data tampering is impossible in principle. It is suitable for data storage of compliance.

About LTFS

LTFS makes it possible to directly access a file system that is divided into data partition and index partition LTO tape by the partition function, and save the information in the file to the index partition, and save the data itself to the data partition.

In addition, by using the LTFS, you can easily realize the data exchange of different platforms Windows / Linux / Mac to another. *For more details about LTFS, Please click here.

partitioning function

Software

High availability, Load balancing – UNITEX FASTDVD Cluster

The clustering software designed for ODA-x004 series. Loosely coupled parallel cluster which can accomplish load balancing and high speed processing at the same time is adopted.

UNITEX FASTDVD Cluster

Coordination with other applications or different OS – UNITEX FASTDVD JobOrder

Write and Print will be executed by transfer the data of write and print to designated folder.
Since it can be done by only operation of file, it is possible to execute by various applications or other OS.

UNITEX FASTDVD JobOrder

Encrypt the written data – UNITEX FASTDVD DataProtector

The encryption using AES encryption algorithm has also been adopted in national institutions.
Since this was designed on the assumption that the media will be distributed, decryption software is written at the same time when data is written In other words, decryption can be done anywhere if you have the password and PC.

UNITEX FASTDVD DataProtector

Coordination with other system – UNITEX FASTDVD SDK

The SDK (Software Development Kit) is provided as DLL format.
Many functions not supported by standard software such as to obtain detailed status or to control the system are implemented.

UNITEX FASTDVD SDK

Solution

Archive & search solution for electronic documents

In cooperation with an electronic document system, you can store the digitized documents to DVD/CD media by the publishing system. By be combined with the library system "OLXWin-2004", search/archive/ storage become easier.

Electronic document management system for local government

Save to DVD/CD after performing encryption to important electronic documents. It is a secure solution while ensuring the security by encryption and does not impair the capability of search.

Electronic document archive system

In cooperation with the electronic document system, legal disclosure documents or infrequently accessed data are written to DVD/CD media. It realize to avoid tight capacity of the HDD and to keep security of stored data at the same time.

Unmanned archive system solution

It is a non-stop redundant system which uses "UNITX FASTDVD Cluster" and "UNITEX FASTDVD JobOrder". By clustering, you can increase the stability and high speed of the system and operate it without paying attentions to issuing operation, because of JobOrder which works in cooperation with the application. This prevents the complete system down due to human error or hardware failure.

Specification

Model ODA2020 HYBRID ODA2020HQ HYBRID
Disc capacity 200 optical discs
Computer for control Controller is embedded in the main body
Optical disc drive DVDRW drive x 2 Professional
Archive BD drive
No of LTO drive LTO Ultrium5×1
Stacker Input stacker 100 x 2
Output stacker 100 x 2
Error disc stacker: up to 40 discs
Security function Protection of media storage area with key lock
Label printing method Inkjet printer
Optical drive recording speed DVD-R x6/CD-R x16 BD-R x2, x4, x6/
BD-R(LTH)x2, x4/
BD-R DL x2, x4/
DVD-R x6/CD-R x16
Support format ISO9660/ISO9660 extension (joliet/RockRidge/character type extension)
UDF1.02,UDF1.50,UDF2.50/UDF Bridge
VIDEO(DVD-Video)
LTO support format LTFS
Network client Windows XP(x86)/Vista(x86)/7(x86,x64)/
Windows Server 2003(x86)/Windows Server 2008(x86)/
Windows Server 2008R2
Control interface Ethernet(1000BASE-T)
Power AC100~200V / 50~60Hz
Operational temperature/humidity Temperature:5℃~40℃ Humidity:20~80%(Non condensing)
Dimensions(mm) 410(W) x 730(D) x 610(H)
Weight Around 40kg
Standard software UNITEX FASTDVD Publisher LTFS for Windows
