FASTtape2300

Tape copy system

FASTtape2300

Simple system configuration specialized
for copying magnetic tape media and tape migration
at system renewal

Summary

High speed copy duplicator which does not depend on the application

FASTtape2300 copies the recorded image of a tape as it is in block unit.

For example, ideal for the purpose of use to copy one more set of backup tapes and store them in a remote place for disaster prevention.

FASTtape2300 has the following merits compared with copy function of backup software.
1) There is no distinction between a primary tape and a secondary tape and it enables easy recovery because it copies exactly the same tape
2) Since copying off-line, it does not put any load on the operation system.

On the other hand, it is possible to copy to a different type of tape, so you can use it for the purpose to migrate the tapes written in an older model to a new model at system renewal.
It is also used for copying large numbers of the same tapes for data distribution.

Features

Confirm the exact match of copy data by Automatic verify function

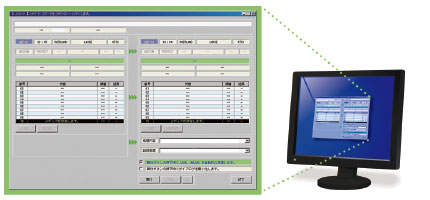

  • Easy & Simple operation by GUI

    • Simple operation by GUI
  • Creation of the same tape by copy function

    • It does not depend on the application and it copies the recorded image of a tape as it is with high speed.

  • Verify function

    • You can make sure if your source data was surely copied to target media.

  • Various deletion function

    • You can select from “High speed deletion”, “EOT deletion”, “Complete deletion”.

  • Fixed length blocks/Variable length blocks

    • It automatically identifies the tapes written in fixed length blocks or variable length blocks and copies them.

  • Compression/Non-compression

    • You can specify compression or non-compression for the tapes to copy.

  • Supports major applications

    • NetVault, Arcserve, BackupExec

  • Off-line copy with standalone system

    • It does not put any load on the operation system.

  • Output of logs

    • You can store work logs, error logs in the disk and take them out whenever you need.

  • Display of progress
  • Copy/Conversion to a different type of tape

Support device

Support drive FASTtape2300 FASTtape2300TX Compatibility
DAT72 ○ ○ DDS-3・DDS-4・DAT72: Read/Write
DAT160 ○ ○ DDS-4・DAT-72・DAT160: Read/Write
LTO-3 ○ ○ LTO-1: Read LTO-2・LTO-3: Read/Write
LTO-4 ○ ○ LTO-2: Read LTO-3・LTO-4: Read/Write
LTO-5 ○ ○ LTO-3: Read LTO-4・LTO-5: Read/Write
LTO-6 ○ ○ LTO-4: Read LTO-5・LTO-6: Read/Write
LTO-7 ○ ○ LTO-5: Read LTO-6・LTO-7: Read/Write
LTO-8 ○ ○ LTO-7・LTO-8: Read/Write
3490ECMT - ○ 18Tr: Read 36Tr: Read/Write
3480/3490CMT - ○ 18Tr・36Tr: Read/Write
Open reel - ○ 800BPI: Read 6025/3200/1600BPI: Read/Write

* Please contact sales department for further informaton on the installed device.

Specification

Model FASTtape2300 / FASTtape2300TX
Number of the connected drive Max. 2 sets
Display/Operation External monitor, keyboard, mouse
Copy/Number of Job 1:1
Verify function Copy, Copy&Verify, Verify
Deletion mode High speed, EOT, Complete
Power consumption *1 Max. 209W
Size (mm) *1 175(W)x395(H)x419(D) table top
Weight *1 14kg

*1 excluding tape drive

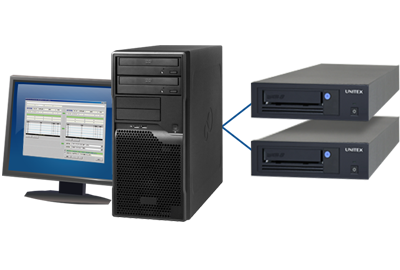

System configuration
Model Configuration
FASTtape2300/
DAT160/LTO-8		 FASTtape2300, DAT160 x 1set, LTO-8 x 1set,
Display monitor, keyboard
FASTtape2300/
LTO-3/LTO-8		 FASTtape2300, LTO-3 x 1set, LTO-8 x 1set,
Display monitor, keyboard
FASTtape2300/
LTO-8/LTO-8		 FASTtape2300, LTO-8 x 2sets
Display monitor, keyboard
FASTtape2300TX/
CMT/LTO-8		 FASTtape2300, 3490CMT x 1set, LTO-8 x 1set,
Display monitor, keyboard

* Other models with various system configuration are available.
  Please contact us for other configuration.
