TapeViewXP

Security/Surveillance camera LTO archive system

TapeViewXP

Archiving system corresponds to Milestone XProtect which has
the biggest world market share in VMS (Video Management Software)

Outline of the solution

Concept

TapeView XProtect is an archiving solution corresponds to Milestone XProtect
which has the biggest world market share in VMS (Video Management Software)

  • Surveillance camera system becomes an essential in improving safety & security measure in the office,
    production lines, financial institutions and a street corner
  • The demand for more vivid high-quality images for monitoring purpose has been growing
  • Long term storage of recorded images becomes more popular because of requirement by law or company's self defense
  • Since size of images and retention period became bigger than before, a system which can save large data
    with long term period, inexpensive way and eco-friendly solution is required

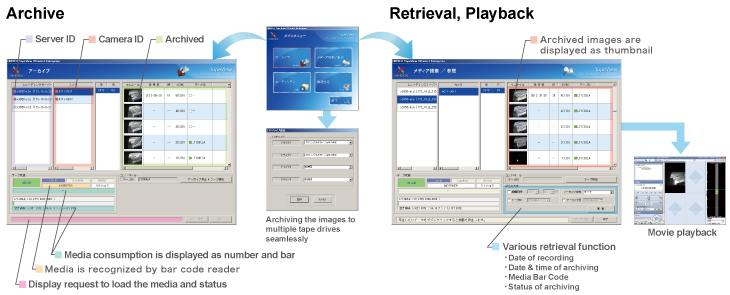

Concept image

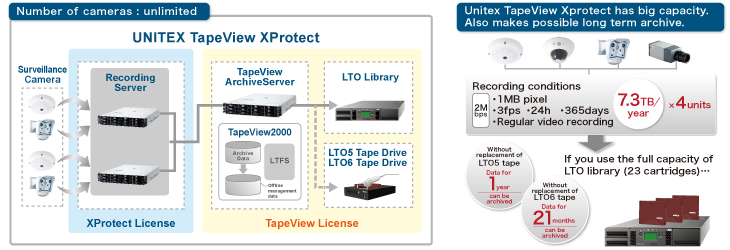

System configuration (example)

Archive solution by LTO tape
Archive solution by LTO tape
  • Centralized management of archived tape in many sites at security center or management of headquarters
  • Because of bar code management, it is easy to control even if the number of the stored LTO tapes are increased
  • Retrieval is easy because of thumbnail and various retrieval function
  • The compression software enables low frequent exchange of LTO tape
  • Solve the problem of network transmission of images

Features

Surveillance camera system is essential for security and improving safety measures at offices,production lines, financial institutions or on the street corners.

  • Demand for high resolution images as monitoring has been growing.
  • Long term storage of recorded images becomes more popular because of requirement by law or company's self defense
  • Since size of images and retention period became bigger than before, a system which can save large data with long term period, inexpensive way and eco-friendly is required
Archive solution

TapeView XProtect can archive large amount of image data to LTO5/LTO6 which can store the data in long time period of 30 years

  • By cooperation with XProtect recording server, information of all cameras can be used as archiving of LTO5/LTO6 tape
  • Possible to playback only images which user wants to playback
  • Possible to replace the tapes without losing recorded images
  • Possible to manage the tape media and recorded images by Bar Code
  • Connectable to 24 I/O slots and 48 I/O slots L TO library

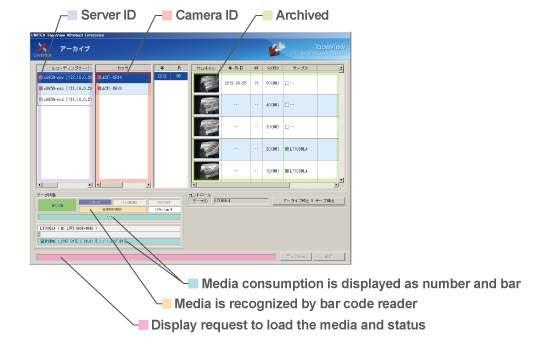

Archive Function
Archive Function

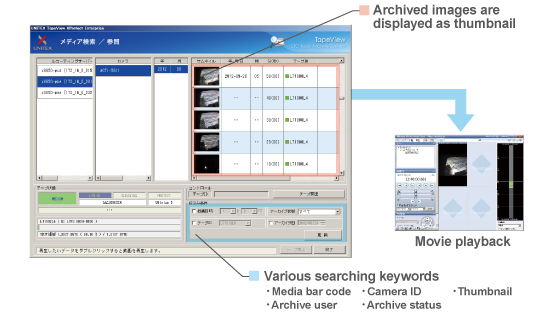

Search and a regenerative function
Search and a regenerative function

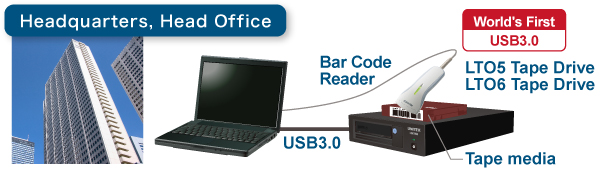

TapeView Search/Playback system
TapeView Search/Playback system

Advantages

  • Suitable for long-term storage of recorded video data at office, manufacturing sites and financial institutions.
  • Capable of long-term storage for 30 years by the LTO5/LTO6 tape. (high durability)
  • Recorded video data can be managed collectively by headquarters or head office. (high portability)
  • Not necessary to prepare large capacity HDD for long term storage. By only adding LTO5/LTO6 tape, it can respond to large capacity of data.
  • Media management in space-saving and energy-saving is possible

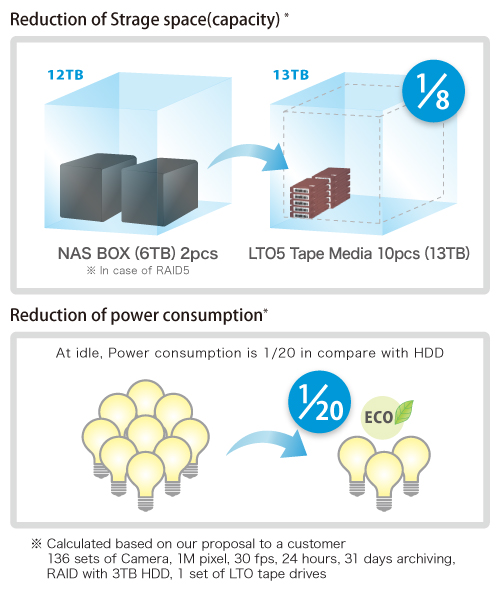

Space-saving and energy-saving media management

Advantages

The system is very suitable to the financial institutions which are requested to archive the data long term period. (Monitoring to teller counter, lobby or ATM machine)

  • To monitor whole store especially CD/ATM automated machines.
  • The presence of surveillance cameras gives a sense of security to the customers
  • Deterrence of crime in unattended corner of the store.
  • Monitoring status of ATM operation
Financial institution is reguested long term period of data archive
ATM

System Structure

TapeView XProtect LTO Tape archive system
Model
Single drive model
Library model
LTO Drive / Library
Maximam 4 sets
24 volume model ～
Software
TapeView LT LTO archive software
LTO Drive/Library
HDD 1TB～ / Windows Server 2008R2
LTO Tape
LTO Ultrium5/LTO Ultrium6 data cartridge
Bar Code Reader
Visible laser diode scanner with USB interface
TapeView search & playback system
Software
TapeView LT LTO search & playback software
Note PC
USB3.0 interface
LTO Tape
USB3.0 equipped LT50/LT60 USB
Bar Code Reader
visible semiconductor lasers scaner, USB
VMS
Milestone XProtect Enterprise
IP surveillance camera
Connectable camera to XProtect
