LT80H/70H/60H USB-RM
LT80/70/60 SAS-RM

1U LTO Rackmount system

1U LTO Rackmount system

1U LTO Rackmount Tape Drive with USB interface
and SAS interface fitting in standard 19 inch rackmount

Features

Load maximum 2 drives in 19 inch rack 1U

  • USB3.0 interface model enable plug & play operation
    (USB-RM model)
      - Enable easy connection to a standard USB port
        without inserting an extension card
  • High speed SAS interface model (SAS-RM model)

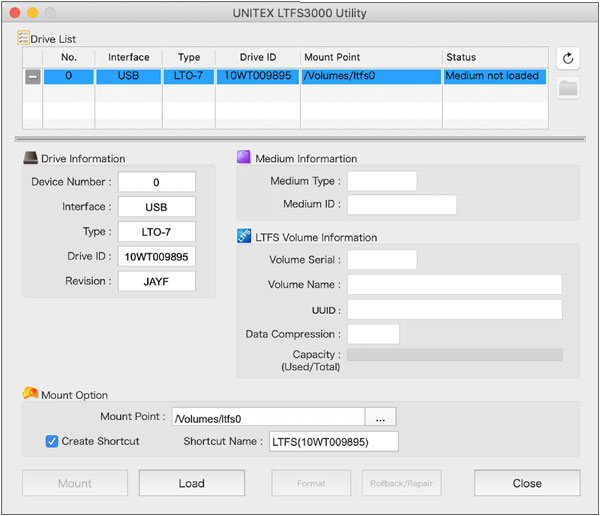

  • UNITEX LTFS3000 software / LTFS GUI utility are included
  • Support Mac, Windows, Linux

Example of use

  • Build a backup environment with the private cloud
    at the data center.
  • Countermeasure for disaster

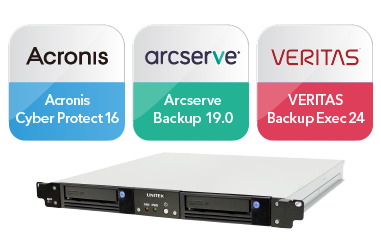

Support various backup software

  • Acronis Backup, Arcserve backup, Veritas Backup Exec,
    Quest NetVault Backup, etc.

Merit of introduction

  • Easy installation
  • Load maximum 2 drives in 19 inch rack 1U
  • Install in the same rack as the operation server to manage easily
  • Enhanced security with hardware encryption

Specification

1U USB LTO Rackmount model
LT80H / 70H / 60H USB-RM Tape Drive

Model LT80H
USB-RM1		 LT80H
USB-RM2		 LT70H
USB-RM1		 LT70H
USB-RM2		 LT60H
USB-RM1		 LT60H
USB-RM2
Drive Type LTO-8
Tape Drive		 LTO-7
Tape Drive		 LTO-6
Tape Drive
Number of Drive 1 2 1 2 1 2
Cartridge type LTO-8
Data cartridge		 LTO-7
Data cartridge		 LTO-6
Data cartridge
Capacity 30.0TB (2.5:1 Compression)/
12.0TB (Native) 		15.0TB (2.5:1 Compression)/
6.0TB (Native)		 6.25TB (2.5:1 Compression)/
2.5TB (Native)
Interface USB3.0
Max. data transfer (Native) 240MB/sec 160MB/sec
Support OS Mac / Windows / Linux
Dimensions (mm) 426.6(W) x 409.8(D) x 44(H)
Power consumption 60VA 90VA 60VA 90VA 60VA 90VA
Weight 6.3kg 8.0kg 6.3kg 8.0kg 6.3kg 8.0kg
Power supply AC 100-240V, 50-60Hz (Automatic range setting)

1U SAS LTO Rackmount model
LT80 / 70 / 60 SAS-RM Tape Drive

Model LT80
SAS-RM1		 LT80
SAS-RM2		 LT70
SAS-RM1		 LT70
SAS-RM2		 LT60
SAS-RM1		 LT60
SAS-RM2
Drive Type LTO-8
Tape Drive		 LTO-7
Tape Drive		 LTO-6
Tape Drive
Number of Drive 1 2 1 2 1 2
Cartridge type LTO-8
Data cartridge		 LTO-7
Data cartridge		 LTO-6
Data cartridge
Capacity 30.0TB (2.5:1 Compression)/
12.0TB (Native) 		15.0TB (2.5:1 Compression)/
6.0TB (Native)		 6.25TB (2.5:1 Compression)/
2.5TB (Native)
Interface miniSAS(SFF-8088)
Max. data transfer (Native) 300MB/sec 160MB/sec
Support OS Mac / Windows / Linux
Dimensions (mm) 426.6(W) x 409.8(D) x 44(H)
Power consumption 60VA 90VA 60VA 90VA 60VA 90VA
Weight 6.3kg 8.0kg 6.3kg 8.0kg 6.3kg 8.0kg
Power supply AC 100-240V, 50-60Hz (Automatic range setting)
