HandyLT　HLT560M

Portable LTO video archive system

HandyLT HLT560M

In various scenes, the large capacity 4K video data can be archived easily
from memory card to LTO tape.

Features

The world's lightest*5kg portable LTO video archive system

  • External dimensions 236H×264D×108H mm, Weight 5kg, robust and dust-proof structure Ideal LTO archive system to the operation of near sets and at filming locations
  • Accomplish user friendly archive and verification operation by a built-in CPU
  • Unitex LTFS which includes in this system provides GUI easy to use and manages customer’s data easily by “drag & drop” operation. (click here for more details about LTFS)
  • One 512GB SSD is equipped. Can be expanded up to 2TB
  • For external connection, 6 of USB3.0 ports and 4 of USB2.0
    ports are equipped It makes possible to archive multiple memory cards such as SRMemory, SxS, P2, etc in succession
  • One port of 1GB Ethernet is available for a network
    connection from the editing room.
lightest*5kg portable LTO video archive system

* As of Feb.2014 researched by UNITEX

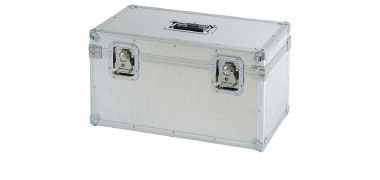

HandyLT exclusive carrying case

  • All-in-one carring case for HandyLT, UPS, monitor, keyboad and mouse.
carrying case

Archive of high capacity, Suitable to 4K video data

  • LTO6 tape drive installed
  • High-speed data transfer rate of 160MB/Sec (native)
  • LTO6 capacity per volume:2.5TB (native) / 6.25TB (2.5:1 compression)
  • Archive by LTFS format
  • External USB hard disk drive can be connected as simultaneous archive for LTO tape and HDD.
Archive of high capacity, Suitable to 4K video data

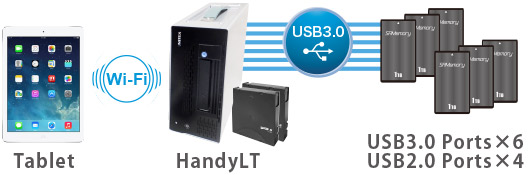

Easy-to-use user interface via Wi-Fi

  • Easy remote operation via Wi-Fi
  • Easily archive from any smart phone or tablet you are currently using

The bulk archive by simple operation by Unitex TapeViewLT archive software

  • Bulk archive is possible by connection of multiple card readers through USB ports.
  • By simple operation of clicking the archive button, the bulk archive with LTFS format is done.
  • Read LTO tape archive data again and execute the verify process.This can confirm exactly match between original
    data and the recording data.
  • Simultaneous archive to the LTO tape and external HDD is possible

Convenient operation

  • Confirm the history of the archiving process by Unitex TapeViewLT archive software
  • Search and reference of archive data is possible
  • Enable to manage search information such as File name, Archived date, LTO ID, comments, etc
  • Enable to eject LTO tape as well as connected external memory card in the card readers
  • Run the format of LTO tape by format function
  • Rollback to the specified past generation by Rollback function

Example of usage

Example of use

Re-use of expensive memory cards

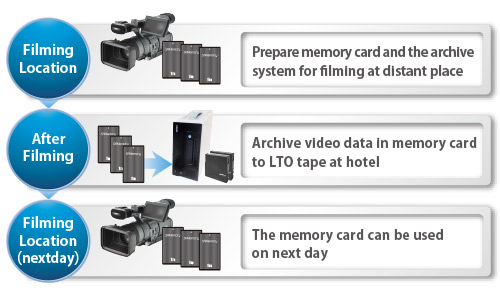

Archive from memory cards to LTO tape at filming location, on-set and near-set

Re-use of expensive memory cards

Memory cards and archive system

Re-use of expensive memory cards

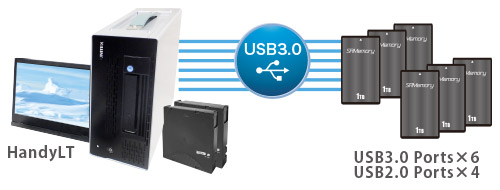

Example of use for consecutive archive of multiple memory cards at filming location

  • The bulk archive of multiple memory cards is possible in a single operation by multiple reader connection.
  • It is not necessary to operate archive on each memory card.You can save time.
Re-use of expensive memory cards

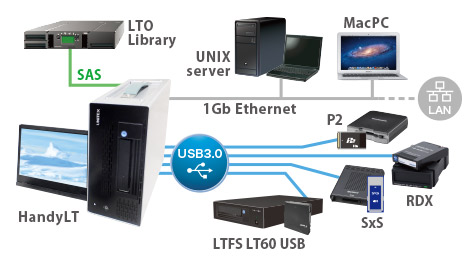

Configuration example in post-production
Configuration example in post-production

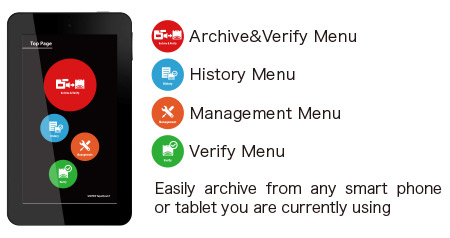

Example of screen by tablet
Example of screen by tablet

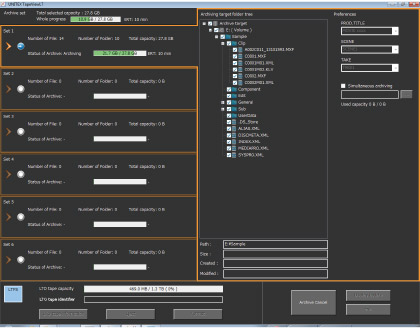

Example of Unitex TapeViewLT archive software screen

  • Memory card reader by USB connection (up to 6 units)
  • Bulk archive of multiple memory cards
  • Confirm exactly match between original data and the recording data
  • Simultaneous archive to LTO tape and HDD
  • Search and refer of archived data
  • History and confirmation of archive process can be done
  • Manage of search information such as file name, archive date, LTO ID, comment etc
Example of Unitex TapeViewLT archive software screen

Benefits of introduction

  • Improve the utilization efficiency of expensive memory card of SxS, P2, etc.
  • Possible to create the valuable time by continuous archive in a single operation
  • Reduction damage risk of video data during transport
Benefits of introduction

Specification

Model HandyLT HLT560M
Software UNITEX TapeViewLT archive software
RAM 4GB
Internal Storage 512GB SSD x 1 (Expandable up to 4 units 2TB)
IO ports USB3.0 x 6, USB2.0 x 4
1Gb Ethernet x 1
SAS x 1 , eSATA x 1
User interface Monitor, Keyboard, Mouse,
Wi-Fi connection tablet, Smart Phone
LTO drive LTO-6 drive
LTO media R/W Ultrium6,Ultrium5
R Ultrium4
File System LTFS
Dimensions(mm) 236(W) × 264(D) × 108(H)
Weight 5kg
Power AC100-240V +/-10%, 50/60Hz
Power consumption Max 200W
Operating environment Temperature 10-40°C
Humidity 20-80% (non-condensing)
Weight 7kg
Option Embedded Reader/Writer for SxS memory card or P2 memory card drive
Additional SSD：512GB or 1.5TB
