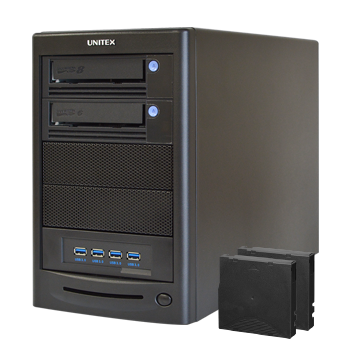

Dual LTO Series

USB3.1 LTO Dual Tape Drive

LTO tape drive

Simultaneous creation of Multiple LTO tapes, Duplication, and Migration

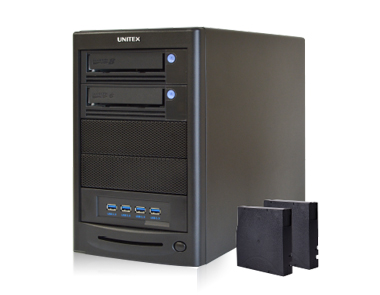

USB3.1 interface Tape Drive with two LTO drives

Features

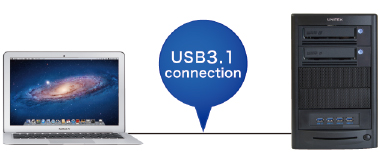

Simple connection with USB3.1 plug and play

  • Connectable to both laptop PC and server
  • External devices can also be connected via 4 x USB3.1 ports
    on the front
Simple connection with USB3.1 plug and play

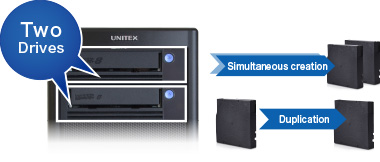

Ideal for simultaneous creation of multiple LTO tapes
and duplication

  • Integrated model with two LTO drives
  • Compact enclosure, requiring only one power supply
simultaneous creation of multiple LTO tapes and duplication

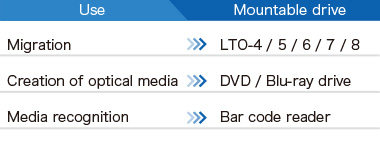

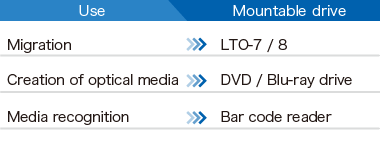

Drive unit that enables customization according
to the purpose of use

  • Each LTO generation's drive for migration
  • Optical drive to create optical media
  • Media recognition unit
Drive unit that enables customization according

Convenient functions by collaboration software ＊

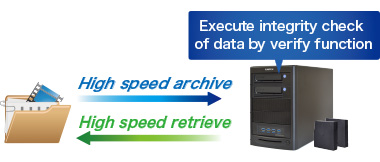

High speed archive & retrieve

  • Maximum data transfer speed 240MB/sec
  • Enables high speed data archive to make the maximum use of device's performance by UNITEX unique data transfer algorithm
High speed archive & retrieve

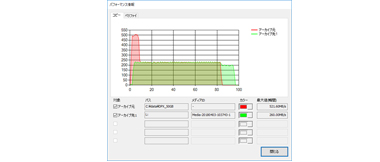

Performance information record and display

  • Graphical display of data transfer speed for each archive source and archive destination
  • Past performance information can be referred from job history
  • It can also be used for troubleshooting such as processing speed bottleneck investigation
Performance information record and display

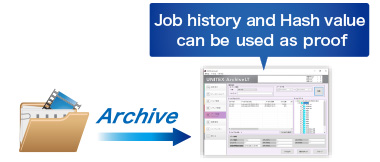

Reliable Job History Management function

  • The job execution result for the important data asset is stored automatically. And you can check it in Job History Management window.

【Job History Management function】
・Job execution result
・Job processing time
・Information of the input source/the output destination
・List of Job processing data
・Hash value (MD5/SHA-1)
・Performance information

Reliable Job History Management function

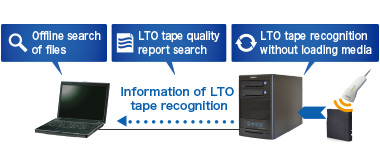

Collaboration functions with bar code reader

  • LTO tape recognition without loading media
  • Offline search of files and LTO tape quality report by information of LTO tape recognition

*Collaboration software varies depending on the OS

Collaboration functions with bar code reader

Software with usability
and reliability enables long-term operation

Software

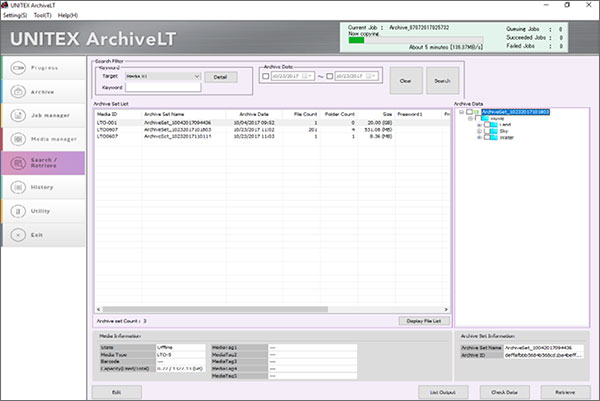

LTO Archiving Software
UNITEX ArchiveLT

LTO Archiving Software UNITEX ArchiveLT

LTO Archiving Software
UNITEX ArchiveLT

  • Archiving of large data such as video data and surveillance camera data
  • High-speed archiving and retrieval
  • Offline management of archived data
  • Reliable history management function
  • Verification check of archived data
  • Migration from other software

    View Details


LTFS Data Copy Software

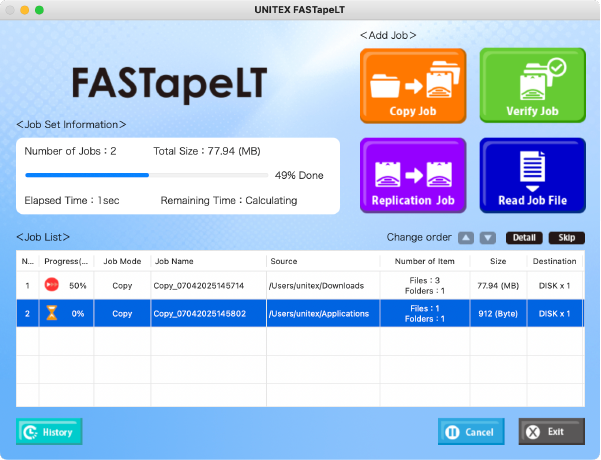

UNITEX FASTapeLT for MacOSX

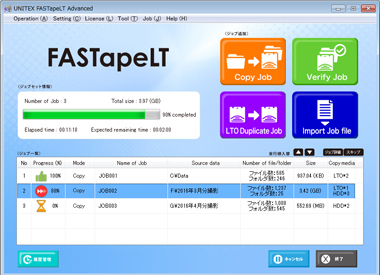

UNITEX FASTapeLT

LTFS Data Copy Software
UNITEX FASTapeLT for MacOSX

  • Simultaneous copying to 4 destinations (LTO/HDD) at maximum
  • Simultaneous copying to multiple LTO tapes
  • Save time by high-speed copying with our unique algorithm
  • Automatic verification function confirms perfect match of copied data.

    View Details

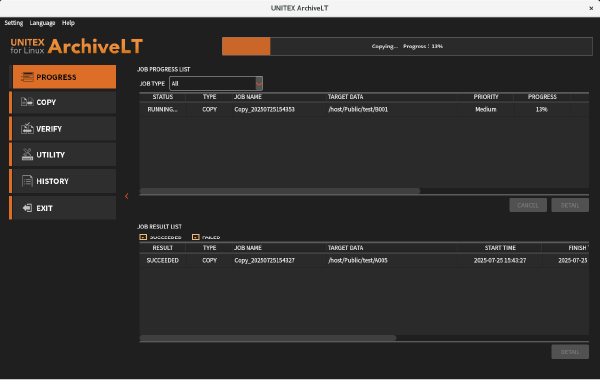

LTO Archiving Software
UNITEX ArchiveLT for Linux / QNAP

UNITEX ArchiveLT for Linux

LTO Archiving Software
UNITEX ArchiveLT for Linux / QNAP

  • Simultaneous copying to up to 4 destinations
  • Simultaneous copying to multiple LTO tapes
  • Save time by high-speed copying with our unique algorithm
  • Automatic verification function confirms perfect match of copied data.

    View Details


Tar Backup Software
TarBackup

TarBackup

Tar Backup Software
TarBackup

  • Read and extract magnetic tapes written by Linux/UNIX tar command
  • Extract archived files created by Linux/UNIX tar command
  • Write magnetic tapes that can be read and extracted with the Linux/UNIX tar command
  • Create archived files that can be extracted by the Linux/UNIX tar command
  • Write Windows files in tar format
  • Provide command line interface
  • Support files in Japanese/directory names (support SJIS and EUC)

Arcserve Backup 19.0 for Windows

Arcserve Backup 19.0 for Windows

Arcserve Backup 19.0 for Windows

  • Adaptability for small to large scale deployments
  • Backup to a variety of targets including tape media and the cloud
  • Extensive standard features including data de-duplication
  • Centralized management from a single management console
  • Track resource usage and more with reports

Examples of using UNITEX LTO tape drive

Easy backup/archive from a laptop PC to an LTO tape

  • Ideal as an entry model of LTO tape drive
  • Ideal for hardware migration in a small-scale environment where backup and archive with DAT160 wasexecuted
  • Realize the storage of large amounts of data with the latest LTO-8
  • Space saving of tape storage location

Storage of large amounts of high resolution video data

  • Archive video asset such as film/VTR
  • Responding to archive media’s requirements as the amount of video data increases

Archive data shot by surveillance camera

  • Archive large amounts of video data under the situation that the number of surveillance cameras with high resolution/colorization increase, which are used in various scenes such as crime prevention, food defense, etc.

Storage of electronic medical record/medical image data,
Data exchange with other hospitals/research institutes

  • Archive large amounts of data that increase in volume due to higher resolution of electronic medical record/medical image data
  • Long-term storage of medical data, Exchange of data between hospitals

Specification

Dual LTO series -Main models

Model DualLT 8080 USB
DualLT 7080 USB
DualLT 7070 USB
Drive Type LTO Ultrium8 x 2 LTO Ultrium7 x 1
LTO Ultrium8 x 1		 LTO Ultrium7 x 2
Compatible LTO LTO-8：Read / Write
LTO-7：Read / Write		 LTO-8：Read / Write
LTO-7：Read / Write
LTO-6：Read / Write
LTO-5：Read		 LTO-7：Read / Write
LTO-6：Read / Write
LTO-5：Read
Capacity
(Native) / (2.5:1 Compressed)		 LTO-8：12.0TB / 30.0TB
LTO-7：6.0TB / 15.0TB		 LTO-8：12.0TB / 30.0TB
LTO-7：6.0TB / 15.0TB
LTO-6：2.5TB / 6.25TB		 LTO-7：6.0TB / 15.0TB
LTO-6：2.5TB / 6.25TB
Interface USB3.1 TypeA
OS support Windows / Mac / Linux
Dimensions (mm) 410(D) x 180(W) x 280(H)
Weight 10Kg
Power consumption 90W (125VA)

＊Drive type can be customized.

Optional device
  • LTO-7 / LTO-8 tape drive
  • DVD / Blu-ray drive
  • Bar code reader
  • Extension USB3.0 port
