LT80H USB

LTO/CMT Magnetic Tape

LT80H/70H/60H/50H USB
LT80H/70H/60H/50H USB/SAS
LT80/70/60/50 SAS
High Speed USB/SAS interface LTO tape drive

USB/SAS interface HighSpeed LTO tape drive supporting
the latest large capacity LTO-8

Features

Entry model with USB3.0/SAS interface which pursues easy of use

Entry model

  • World’s first USB3.0 interface tape drive developed by UNITEX
  • Easy to use without requiring special knowledge and skills
  • Ideal as an entry model for backup and archive in small offices
  • USB/SAS Hybrid model can selectively use USB3.0 and SAS interface according to the scene

USB3.0 interface and High Speed data transfer (240MB/s)

shorten by 5 hours

LT70H USB achieves a 70% improvement in data transfer speed over the conventional LT70 USB. It can be used easily on laptop PCs that can not install SAS interface. Because data transfer speed has drastically improved to 240MB/s ,which is very thin for SAS interface, it is easy to handle and the benefit to a stress-free backup/archive are immeasurable.

Supports global industry standard backup software

LTO bundle

  • UNITEX LTO tape drive supports Acronis Backup, Arcserve Backup, VERITAS Backup Exec, Quest NetVault Backup, etc.

LTO tape drive as a countermeasure for Ransomware

Ransomware

  • It is not possible to access from network because LTO tape is managed off-line.
  • Data can be retrieved without depending on the computer by using LTFS3000.

Software

Bundles GUI utility which enables all the operation
of LTFS on one window

UNITEX LTFS3000

LTO Tape File System Software

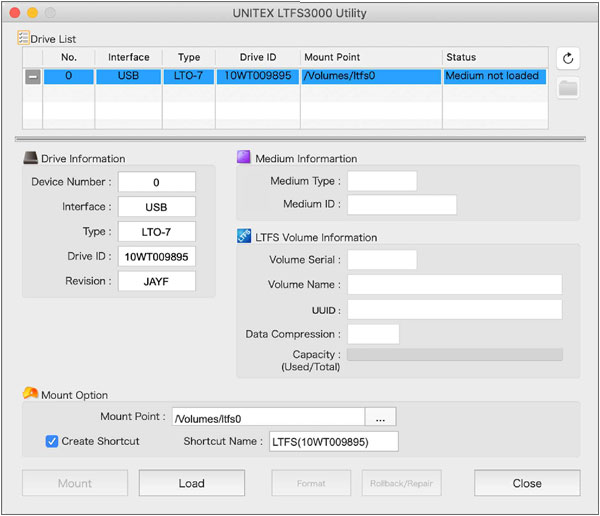

LTFS3000 GUI utility
  • Enables all the operation of LTFS on one GUI.
  • Enables data transfer/copy/deletion by drag & drop operation from Windows Explorer and Mac Finder easily.
  • Multiple LTO drives can be used in parallel in one system.
  • Data can be shared and exchanged in multiple OS environments (Windows, Mac, Linux)



  • *Not compatible with LT40

Archive software providing data storage
and off-line management function (Optional)

UNITEX ArchiveLT

LTO Archive software
UNITEX ArchiveLT
  • Archive large amounts of data such as video data and surveillance camera data
  • High speed archive & retrieve
  • Off-line management for the archived data
  • Reliable Job History Management function
  • Consistency check for the archived data
  • Import media management information from other software



  • *Not compatible with LT40

Data copy software (Optional)

UNITEX FASTapeLT

LTFS Data copy software
UNITEX FASTapeLT Advanced
  • Simultaneous copy to maximum 4 media (LTO/HDD)
  • High speed copy by UNITEX unique algorithm to shorten the processing time
  • Execute integrity check of copy data by verify function
  • Job history management



  • *Not compatible with LT40


FASTCopyLT

LTFS Data copy software
UNTEX FASTCopy LT
  • Automatic Verify function
  • Enables copy/verify of data to LTO and HDD in parallel
  • Copy/Verify results are output as a report



  • *Not compatible with LT40

Example of using UNITEX LTO tape drive

Easy backup/archive from a laptop PC to an LTO tape

  • Ideal as an entry model of LTO tape drive
  • Ideal for hardware migration in a small-scale environment where backup and archive with DAT160 was executed
  • Realize the storage of large amounts of data by supporting the latest LTO-8
  • Space saving of tape storage location

Storage of large amounts of high resolution video data

  • Archive video asset such as film/VTR
  • Responding to archive media’s requirements as the amount of video data increases

Archive data shot by surveillance camera

  • Archive large amounts of video data under the situation that the number of surveillance cameras with high resolution/colorization increase, which are used in various scenes such as crime prevention, food defense, etc.

Storage of electronic medical record/medical image data,
Data exchange with other hospitals/research institutes

  • Archive large amounts of data that increase in volume due to higher resolution of electronic medical record/medical image data
  • Long-term storage of medical data, Exchange of data between hospitals

Specification

High Speed USB3.0 LTO tape drive
Model LT80H USB
LT70H USB
LT60H USB
LT50H USB
Drive Type LTO Ultrium8 LTO Ultrium7 LTO Ultrium6 LTO Ultrium5
Interface USB3.0
Capacity 12.0TB (Native) /
30.0TB (2.5:1 Compression)
6.0TB (Native) /
15.0TB (2.5:1 Compression)
2.5TB (Native) /
6.25TB (2.5:1 Compression)
1.5TB (Native) /
3.0TB (2:1 Compression)
Native data transfer (Max) USB3.0: 240MB/sec
USB3.0: 240MB/sec
USB3.0: 160MB/sec
USB3.0: 140MB/sec
OS support Mac OS X / Windows / Linux
Dimensions (mm) 215(W) x 370(D) x 60(H) mm
Power consumption 65VA
Weight 4.5kg
Contents LTO Tape Drive
USB3.0 cable
Cleaning cartridge
User guide (English)
UNITEX LTFS3000 software (English)
High Speed USB3.0/SAS LTO tape drive
Model LT80H USB/SAS
LT70H USB/SAS
LT60H USB/SAS
LT50H USB/SAS
Drive Type LTO Ultrium8 LTO Ultrium7 LTO Ultrium6 LTO Ultrium5
Interface USB3.0/6Gbps SAS
Capacity 12.0TB (Native) /
30.0TB (2.5:1 Compression)
6.0TB (Native) /
15.0TB (2.5:1 Compression)
2.5TB (Native) /
6.25TB (2.5:1 Compression)
1.5TB (Native) /
3.0TB (2:1 Compression)
Native data transfer (Max) USB 3.0: 240MB/sec
6Gbps SAS: 300MB/sec
USB3.0: 240MB/sec
6Gbps SAS: 300MB/sec
USB 3.0: 160MB/sec
6Gbps SAS: 160MB/sec
USB 3.0: 140MB/sec
6Gbps SAS: 140MB/sec
OS support Mac OS X / Windows / Linux
Dimensions (mm) 215(W) x 370(D) x 60(H) mm
Power consumption 65VA
Weight 4.5kg
Contents LTO Tape Drive
USB3.0 cable
Cleaning cartridge
User guide (English)
UNITEX LTFS3000 software (English)
SAS LTO tape drive
Model LT80 SAS
LT70 SAS LT60 SAS LT50 SAS
Drive Type LTO Ultrium8 LTO Ultrium7 LTO Ultrium6 LTO Ultrium5
Interface 6Gbps SAS
Capacity 12.0TB (Native) /
30.0TB (2.5:1 Compression)
6.0TB (Native) /
15.0TB (2.5:1 Compression)
2.5TB (Native) /
6.25TB (2.5:1 Compression)
1.5TB (Native) /
3.0TB (2:1 Compression)
Native data transfer (Max) 6Gbps SAS: 300MB/sec 6Gbps SAS: 300MB/sec 6Gbps SAS: 160MB/sec 6Gbps SAS: 140MB/sec
OS support Mac OS X / Windows / Linux
Dimensions (mm) 215(W) x 370(D) x 60(H) mm
Power consumption 65VA
Weight 4.5kg
Contents LTO Tape Drive
Cleaning cartridge
User guide (English)
UNITEX LTFS3000 software (English)
